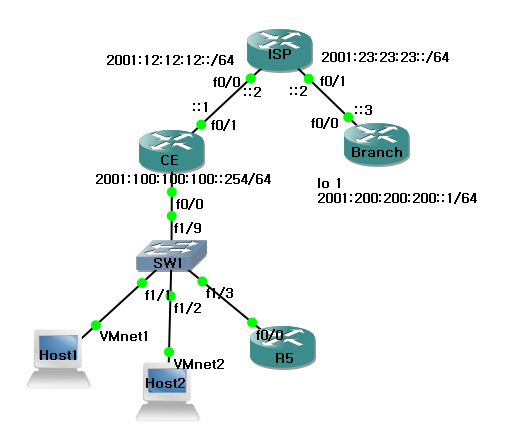

IPv6 라우팅

ce]

ipv6 uni

int f0/0

no sh

ipv6 add 2001:100:100:100::254/64

exit



int f0/1

no sh

ipv6 add 2001:12:12:12::1/64

ipv6 add fe80::1 link-local



ipv6 route 2001:23:23:23::/64 f0/1 fe80::2

ipv6 route 2001:200:200:200::/64 f0/1 fe80::2

-> ipv6 route ::/0 f0/1 fe80::2



isp]

ipv6 uni

int f0/0

no sh

ipv6 add 2001:12:12:12::2/64

ipv6 add fe80::2 link-local

exit



int f0/1

no sh

ipv6 add 2001:23:23:23::2/64

ipv6 add fe80::2 link-local



ipv6 route 2001:100:100:100::/64 f0/0 fe80::1

ipv6 route 2001:200:200:200::/64 f0/1 fe80::3





branch]

ipv6 uni

int f0/0

no sh

ipv6 add 2001:23:23:23::3/64

ipv6 add fe80::3 link-local

exit



int lo 1

ipv6 add 2001:200:200:200::1/64



ipv6 route 2001:12:12:12::/64 f0/0 fe80::2

ipv6 route 2001:100:100:100::/64 f0/0 fe80::2

-> ipv6 route ::/0 f0/0 fe80::2





R5]

no ipv6 routing

ipv6 uni

int f0/0

no sh

ipv6 add autoconfig

exit



-----------------------------------------------------------------------

CE]

ipv6 uni



int lo  0

ip add 200.100.100.1 255.255.255.0

ipv6 add 2001:100:100:100::1/64

exit



int f0/0

no sh

ip add 1.1.10.1 255.255.255.252

ipv6 add 2001:12:12:12::1/64

ipv6 add fe80::1 link-local --###자동생성###

exit



int f0/1

no sh

ip add 1.1.10.5 255.255.255.252

ipv6 add 2001:23:23:23::1/64

ipv6 add fe80::1 link-local --###자동생성###

exit



ip route 1.1.1.0 255.255.255.0 f0/0 1.1.10.2

ip route 1.1.1.0 255.255.255.0 f0/1 1.1.10.6

ipv6 route 2001:20:20:20::/64 f0/0 FE80::CE02:6FF:FE78:F101

ipv6 route 2001:20:20:20::/64 f0/1 FE80::CE03:1FF:FE60:F101







###############

sh ipv6 int f0/0, f0/1 로 link local 확인하기

f0/0 = FE80::CE01:14FF:FE48:0

f0/1 = FE80::CE01:14FF:FE48:1





DSW1]

ipv6 uni



vlan 10

name IPv4

exit

vlan 20

name IPv6

exit



int f1/0

sw tr enc dot

sw mod tr

sw tr native vlan 10

exit



int f1/1

no sw

no sh

ip add 1.1.10.2 255.255.255.252

ipv6 add 2001:12:12:12::2/64

ipv6 add fe80::2 link-local --###자동생성###

exit



int vlan 10

ip add 1.1.1.252 255.255.255.0

exit

int vlan 20

ipv6 add 2001:20:20:20::252/64

exit



ip route 200.100.100.0 255.255.255.0 f1/1 1.1.10.1

ipv6 route 2001:100:100:100::/64 f1/1 fe80::1



ip route 0.0.0.0 0.0.0.0 f1/1 1.1.10.1

ipv6 route ::/0 f1/1 FE80::CE01:14FF:FE48:0



###############

sh ipv6 int f1/1 로 link local 확인하기

f1/1 = FE80::CE02:6FF:FE78:F101







DSW2]

ipv6 uni



vlan 10

name IPv4

exit

vlan 20

name IPv6

exit



int f1/0

sw tr enc dot

sw mod tr

sw tr native vlan 10

exit



int f1/1

no sw

no sh

ip add 1.1.10.6 255.255.255.252

ipv6 add 2001:23:23:23::3/64

ipv6 add fe80::2 link-local --###자동생성###

exit



int vlan 10

ip add 1.1.1.253 255.255.255.0

exit

int vlan 20

ipv6 add 2001:20:20:20::253/64

exit



ip route 200.100.100.0 255.255.255.0 f1/1 1.1.10.5

ipv6 route 2001:100:100:100::/64 f1/1 fe80::1



ip route 0.0.0.0 0.0.0.0 f1/1 1.1.10.5

ipv6 route ::/0 f1/1 FE80::CE01:14FF:FE48:1



###############

sh ipv6 int f1/1 로 link local 확인하기

f1/1 = FE80::CE03:1FF:FE60:F101









[ASW]

no ip routing

vlan 10

name IPv4

exit

vlan 20

name IPv6

exit

int f1/0

sw mod acc

sw acc vlan 10

exit

int f1/1

sw mod acc

sw acc vlan 20

exit

int range f1/14 -15

sw tr enc dot

sw mod tr

sw tr native vlan 10

exit





____________________________________________________________________

▪ IPv6 HSRP

- IPv6의 경우 HSRP를 구성할 때 반드시 HSRP version 2를 사용해야 한다.



- UDP 포트 2029번 사용한다.



- Virtual MAC 주소는 [0005.73A0.0NNN]을 사용한다.  NNN은 Group 번호를 의미한다.



- Virtual IP 주소는 Link-Local 주소가 사용되며, Autoconfig가 가능하다.

  각 Group의 Virtual MAC 주소를 사용하여 EUI-64 방식으로 Virtual IP 주소의 Interface-ID를 생성.



- Active 장비가 전송하는 HSRPv2 Hello 메시지의 출발지 MAC 주소는 Virtual MAC 주소가 사용된다.  Standby 장비가 전송하는 HSRPv2 Hello 메시지의 경우 출발지 MAC 주소로 실제 장비의 MAC 주소가 사용된다.



netsh interface ipv6 show neighbor -> ipv6 네이버 테이블 보기

netsh interface ipv6 delete neighbors -> ipv6 네이버 테이블 삭제

____________________________________________________________________





dsw1]

int vlan 10

standby 10 ip 1.1.1.100

standby 10 priority 110

standby 10 preempt delay minimum 5

standby 10 track f1/1 50

exit



int vlan 20

standby ver 2

standby 20 ipv6 autoconfig

standby 20 preempt

exit





dsw2]

int vlan 10

standby 10 ip 1.1.1.100

standby 10 preempt

exit



int vlan 20

standby ver 2

standby 20 ipv6 autoconfig

standby 20 priority 110

standby 20 preempt delay minimum 5

standby 20 track f1/1 50

exit





##############

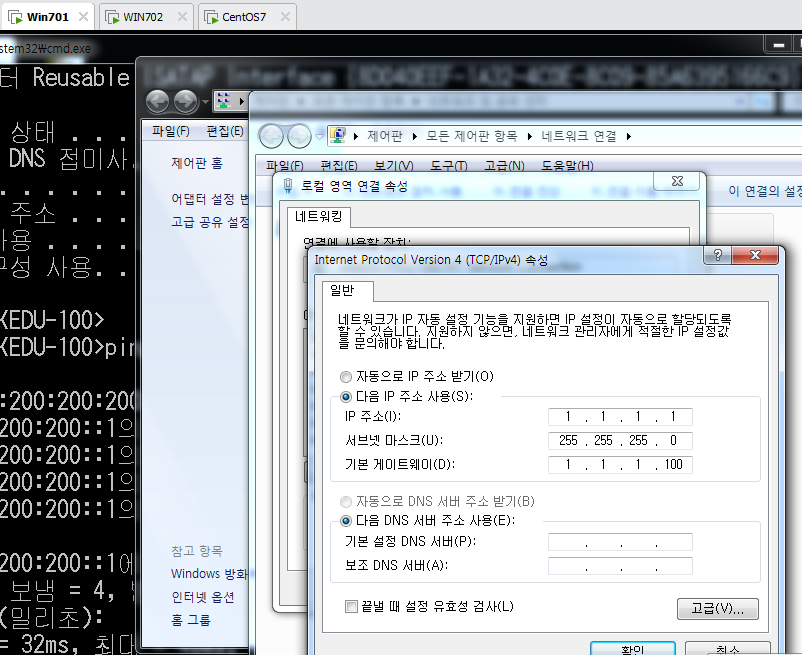

dsw1 -

dsw2 - Virtual IP address is FE80::5:73FF:FEA0:14
