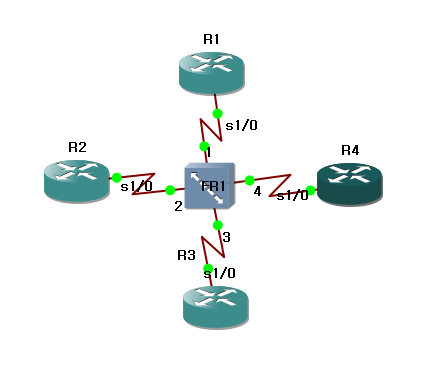

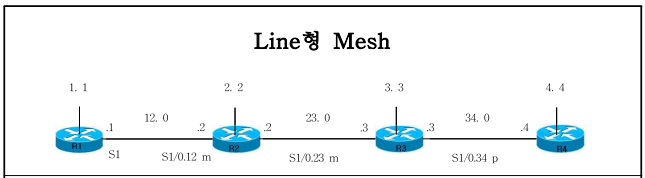

[keduit]line형Mesh(ptop ptomul multomul) -2023/02/21





R1]

enable

conf t

no ip domain lookup

line c 0

 logg sy

 exec-timeout 0

 exit

hostname R1

int loop 0

ip add 1.1.1.1 255.255.255.0

int s1/0

no shut

encap frame

no frame invers

clock rate 64000

ip add 1.1.12.1 255.255.255.0

frame map ip 1.1.12.2 102 br

exit

ip route 1.1.2.0 255.255.255.0 s1/0 1.1.12.2

ip route 1.1.3.0 255.255.255.0 s1/0 1.1.12.2

ip route 1.1.4.0 255.255.255.0 s1/0 1.1.12.2

ip route 1.1.23.0 255.255.255.0 s1/0 1.1.12.2

ip route 1.1.34.0 255.255.255.0 s1/0 1.1.12.2

exit

copy r s





R2]

enable

conf t

no ip domain lookup

line c 0

 logg sy

 exec-timeout 0

 exit

hostname R2

int loop 0

ip add 1.1.2.2 255.255.255.0

int s1/0

 no shut

 enc frame

 no fram inver

 clock rate 64000

 exit

int s1/0.12 m

 ip add 1.1.12.2 255.255.255.0

 fram map ip 1.1.12.1 201 br

 exit

int s1/0.23 m

 ip add 1.1.23.2 255.255.255.0

 fram map ip 1.1.23.3 203 br

 exit

ip route 1.1.1.0 255.255.255.0 s1/0.12 1.1.12.1

ip route 1.1.3.0 255.255.255.0 s1/0.23 1.1.23.3

ip route 1.1.4.0 255.255.255.0 s1/0.23 1.1.23.3

ip route 1.1.34.0 255.255.255.0 s1/0.23 1.1.23.3

exit

copy r s





R3]

enable

conf t

no ip domain lookup

line c 0

 logg sy

 exec-timeout 0

 exit

hostname R3

int loop 0

ip add 1.1.3.3 255.255.255.0

int s1/0

 no shut

 enc fram

 no fram inver

 clock rate 64000

 exit

int s1/0.23 m

 ip add 1.1.23.3 255.255.255.0

 fram map ip 1.1.23.2 302 br

 exit

int s1/0.34 p

 ip add 1.1.34.3 255.255.255.0

 fram inter 304

 exit

exit

ip route 1.1.1.0 255.255.255.0 s1/0.23 1.1.23.2

ip route 1.1.12.0 255.255.255.0 s1/0.23 1.1.23.2

ip route 1.1.2.0 255.255.255.0 s1/0.23 1.1.23.2

ip route 1.1.4.0 255.255.255.0 s1/0.34 1.1.34.4

exit

copy r s



R4]

enable

conf t

no ip domain lookup

line c 0

 logg sy

 exec-timeout 0

 exit

hostname R4

int loop 0

ip add 1.1.4.4 255.255.255.0

int s1/0

 no shut

 enc fram

 no fram inver

 clock rate 64000

 exit

int s1/0.34 p

 ip add 1.1.34.4 255.255.255.0

 fram inter 403

 exit

exit

ip route 1.1.1.0 255.255.255.0 s1/0.34 1.1.34.3

ip route 1.1.2.0 255.255.255.0 s1/0.34 1.1.34.3

ip route 1.1.3.0 255.255.255.0 s1/0.34 1.1.34.3

ip route 1.1.12.0 255.255.255.0 s1/0.34 1.1.34.3

ip route 1.1.23.0 255.255.255.0 s1/0.34 1.1.34.3

exit

copy r s

-----------------

기본명령어 모아놓은곳

https://euless.tistory.com/38

-----------------

sh ip int b

 : 포트 up/down 여부와 ip확인

sh run

 : 러닝컨피그, 현재 모든설정을 보여줌

sh run int s1/0

 : 러닝컨피그중 s1/0(주인터페이스)의 설정만 요약해 보여달라

sh run int s1/0.12

 : 러닝컨피그중 s1/0.12(서브인터페이스)의 설정만 요약해 보여달라

sh frame map

 : dhcl 맵 정보를 보여달라

-----------------

conf t

int s1/0

frame lmi-type ?

//라우터 회사지정, 다르면 해당꺼를 no frame lmi-type ? 로 밀고 새로넣음
